Bug #3215

1GPON设备在RMS平台查询VendorClassID、OpticalModuleSubType参数值不符合规范定义。

Added by 伟 何 3 months ago. Updated 3 months ago.

Status:
Closed
Priority:
Normal
Assignee:
伟 何
Start date:
02/17/2025
Due date:
% Done:

0%

测试版本:
20250214151657_aa0f691_emei_ker_fs_fwk.bin
复现概率:
100%

Description

测试步骤：

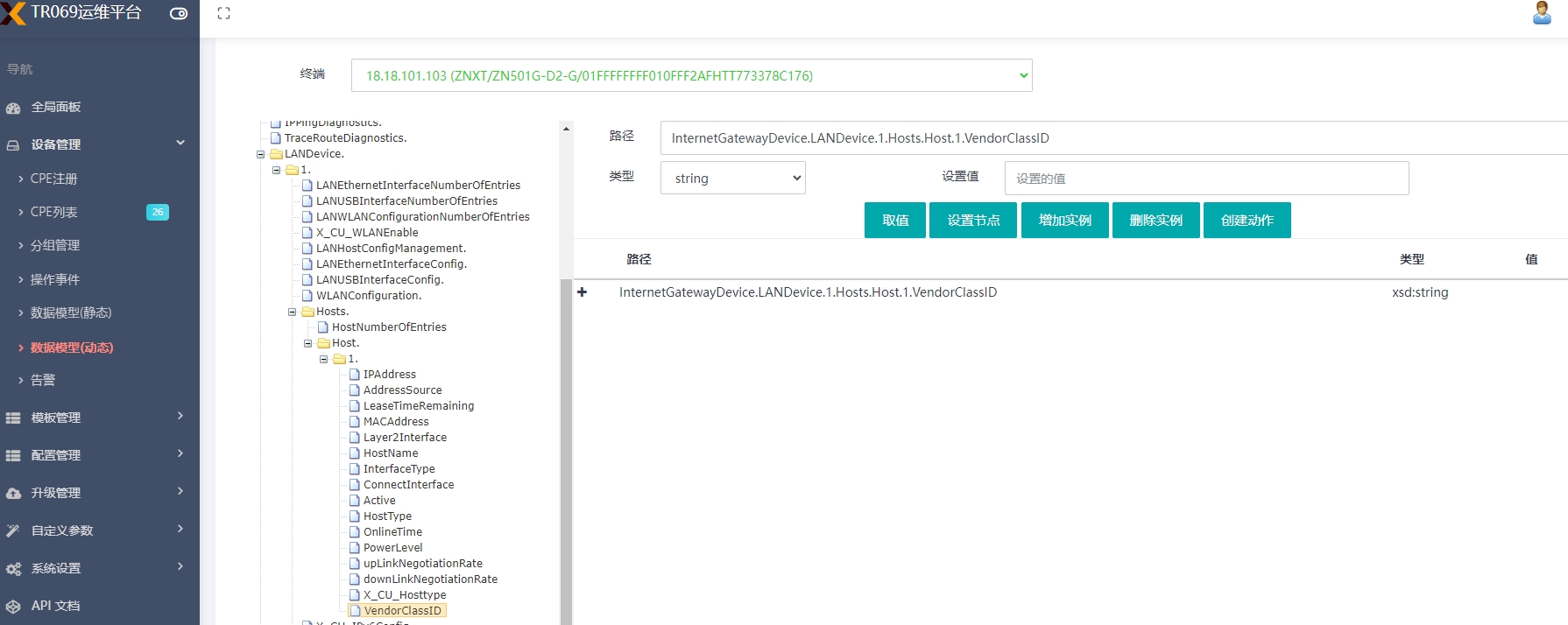

1.在RMS平台查询对参数VendorClassID：
InternetGatewayDevice.LANDevice.1.Hosts.Host.1.VendorClassID

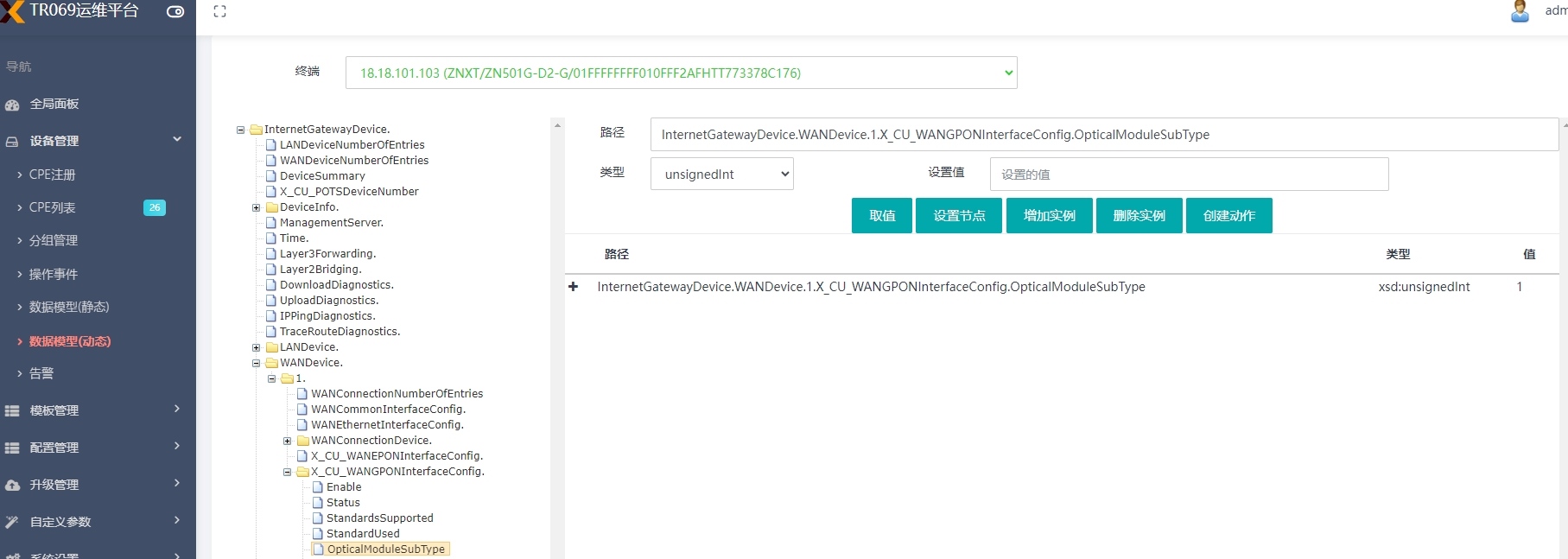

2、在RMS平台查询对参数OpticalModuleSubType：
InternetGatewayDevice.WANDevice.1.X_CU_WANGPONInterfaceConfig.OpticalModuleSubType

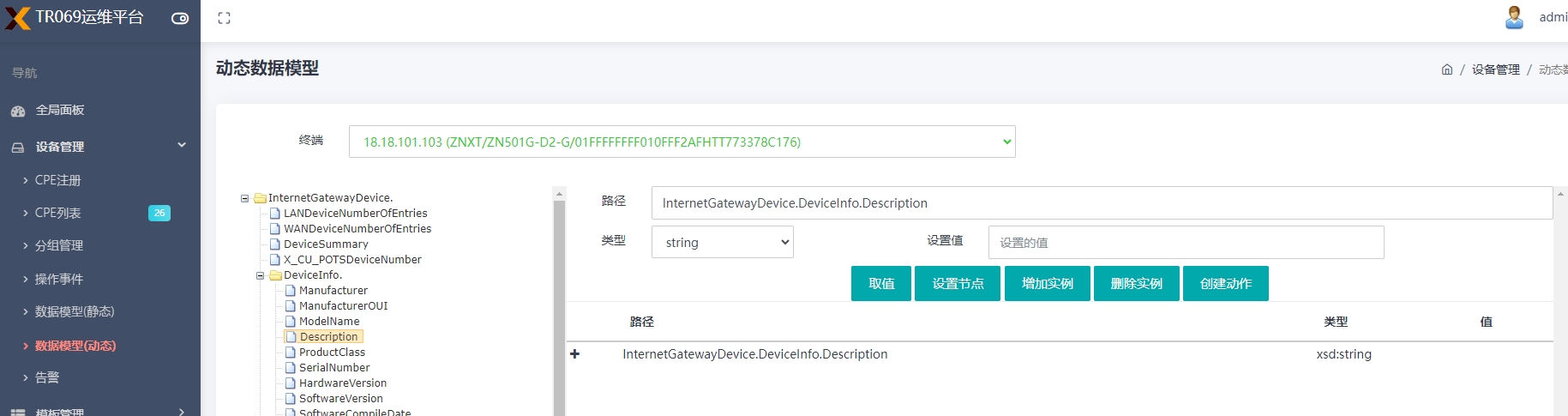

3、在RMS平台查询对参数Description：
InternetGatewayDevice.DeviceInfo.Description

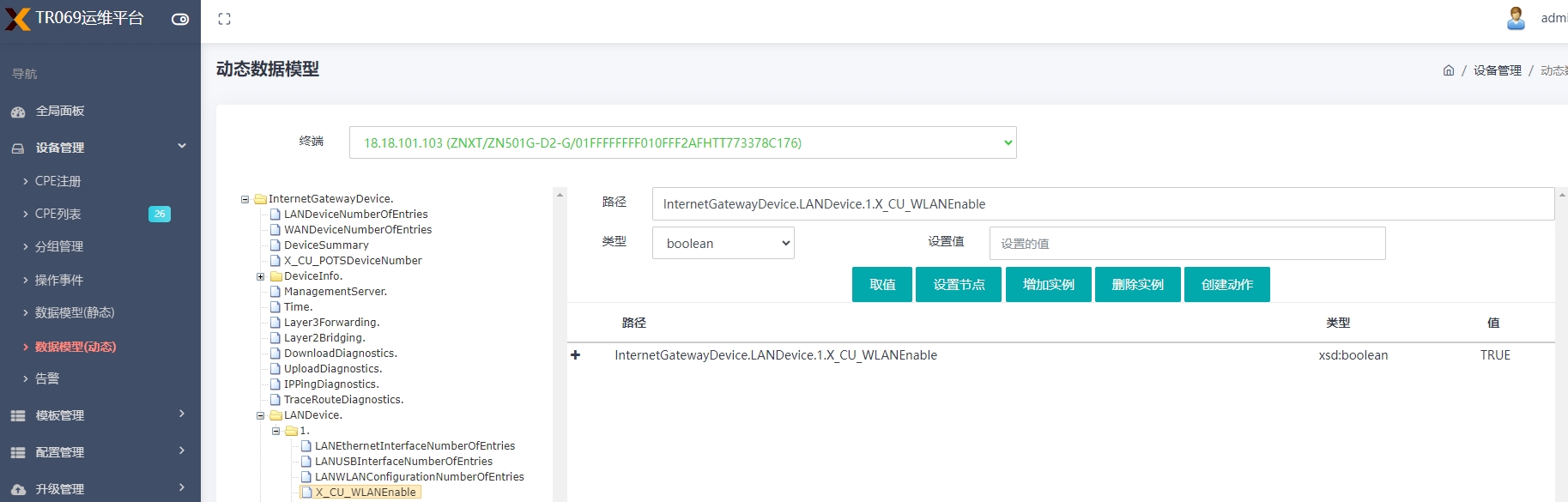

4、在RMS平台查询对参数WLAN：
InternetGatewayDevice.LANDevice.1.X_CU_WLANEnable
通过标准：
1、节点下可查询到参数值，取值符合规范要求。
实际结果：
1、VendorClassID参数值为空
2、OpticalModuleSubType参数值为1
3、Description参数值为空
4、WLAN参数值为TRUE





History

#1 Updated by 家衡 付 3 months ago

InternetGatewayDevice.WANDevice.1.X_CU_WANGPONInterfaceConfig.OpticalModuleSubType文档要求是int型整数值，1对应class B+

#2 Updated by 家衡 付 3 months ago

InternetGatewayDevice.DeviceInfo.Description xsd:string HomeGateWay

#3 Updated by 家衡 付 3 months ago

InternetGatewayDevice.LANDevice.1.Hosts.Host.1.VendorClassID xsd:string MSFT 5.0

#4 Updated by 家衡 付 3 months ago

InternetGatewayDevice.LANDevice.1.X_CU_WLANEnable看到是false

#5 Updated by 家衡 付 3 months ago

  • Status changed from New to Resolved
  • Assignee changed from 家衡 付 to 伟 何

#6 Updated by 伟 何 3 months ago

  • Status changed from Resolved to Closed

已修改
